| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Sumit Surgical |
| Working Power | AC220V, 50Hz |
| Cross Arm Range of Motion (Radius) | 700-1800mm |
| Click to view more | |

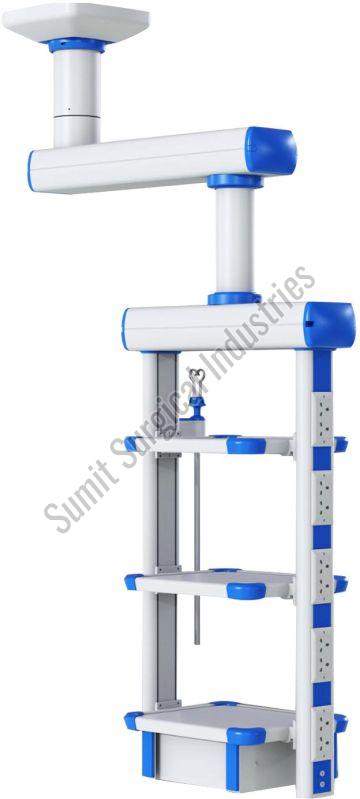

Product Details
Horizontal Rotation Angle
0 ~ 340 °, the Cross Arm and the Terminal Box Can Be Rotated Horizontally or Simultaneously
The Net Load Weight
120 Kg
Power Socket
10, 220V, 10A
Standard Configuration
- Power socket: 10, 220V, 10A;
- Equipotential grounding terminal: 2;
- One stainless steel adjustable infusion rod holder;
- One stainless steel adjustable syringe pump frame;
- The main material is made of high-strength aluminum alloy profiles;
- The surface treatment is electrostatic spraying; ceiling-mounted installation, stable and firm.
- One storage item.
Gas interface configuration (2 oxygen, 2 vacuum suction, 2 compressed air):
- The interface color and shape are different, with anti-missing function;
- The number of insertions and removals is more than 20,000 times;
- Use secondary sealing, with three states (on, off, pull), with gas maintenance;
Technical Parameters
Instrument platform: 3 layers (height adjustable) optional 490mm * 360mm * 47mm or 550mm * 400mm * 47mm; with 10mm × 25mm side rail enclosure, rounded bumper design.
